EM5201BJ - Ultra-low Resistance

EM5201BJ Description

EM5201BJ Ultra-low Resistance with Quick Rising Time Load Switch General .
The EM5201B is a small, ultra-low RON, single channel load switch with controlled turn on.

EM5201BJ Features

* VBIAS Voltage Range : 3V to 5.5V
* VIN Voltage Range : 0.8V to 5.5V
* Low Ron Internal NMOS: Ron=20m ohm at Vin=1.05V(VBIAS=3.3V to 5.5V)
* 4.5A Maximum Continuous Switch Current
* Low Quiescent Current (20uA at VBIAS=5V)
* Low Shutdown Current (1uA at VBIAS=5V)
* Quick

EM5201BJ Applications

* Notebook & Netbook &MB
* Desktops
* Tablet PC Pin Configuration Typical Application Circuit VBIAS VIN VIN 2 CIN 1uF Enable 6 Disable ON VBIAS 5 VOUT 4 EM5201BJ CL 0.1uF 1 GND
* CIN>10xCL is recommended. VOUT RL 2018/09/28 A.6 1 Pin Assignment EM5201BJ Pin Name Pi

📥 Download Datasheet

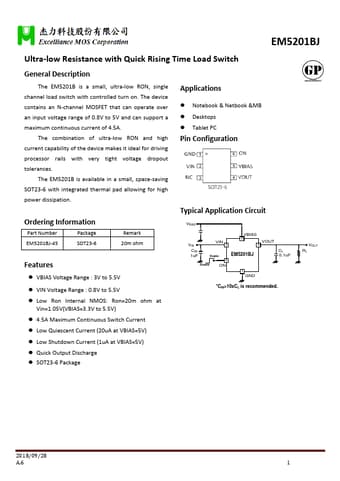

Preview of EM5201BJ PDF
