EM5201D

Ultra-low Resistance

EM5201D Features

* Typical Application Circuit

* VBIAS Voltage Range : 3V to 5.5V

* VIN Voltage Range : 0.8V to 5.5V

* Low Ron Internal NMOS: Ron=6.5mohm for 8A at Vin=1.05V(VBIAS=3V to 5.5V)

* 8A Continuous Current

* Low Quiescent Current (20uA at VBIAS=5V)

* Low Shutdown Current (1uA at VBI

EM5201D General Description

The EM5201D is a small, ultra-low RON, single channel load switch with controlled turn on. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.6V to 5V and can support a maximum continuous current of 8A. The combination of ultra-low RON and high current capabil.

EM5201D Datasheet (801.59 KB)

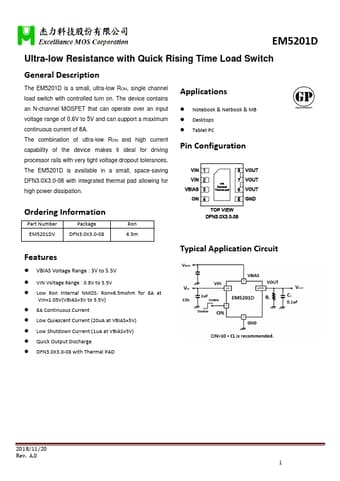

Preview of EM5201D PDF

Datasheet Details

Part number:

EM5201D

Manufacturer:

Excelliance MOS

File Size:

801.59 KB

Description:

Ultra-low resistance.
