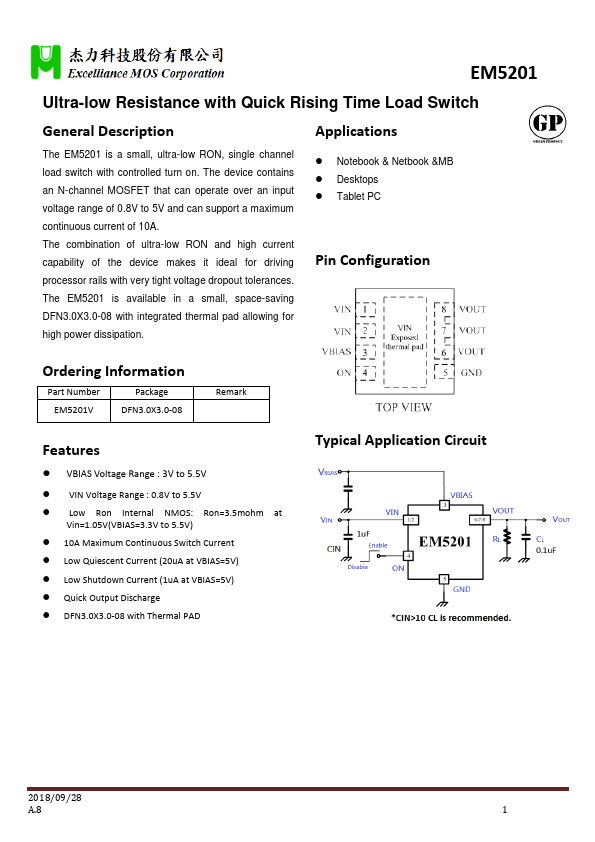

EM5201V
Description
Applications
The EM5201 is a small, ultra-low RON, single channel load switch with controlled turn on. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.8V to 5V and can support a maximum continuous current of 10A. The bination of ultra-low RON and high current capability of the device makes it ideal for driving processor rails with very tight voltage dropout tolerances. The EM5201 is available in a small, space-saving DFN3.0X3.0-08 with integrated thermal pad allowing for high power dissipation.
- Notebook & Netbook &MB
- Desktops
- Tablet PC
Pin Configuration
Ordering Information
Part Number EM5201V
Package DFN3.0X3.0-08
Remark
Features
- VBIAS Voltage Range : 3V to 5.5V
- VIN Voltage Range : 0.8V to 5.5V
- Low Ron Internal NMOS: Ron=3.5mohm at
Vin=1.05V(VBIAS=3.3V to 5.5V)
- 10A Maximum Continuous Switch Current
- Low Quiescent Current (20u A at VBIAS=5V)
- Low Shutdown Current (1u A at VBIAS=5V)
- Quick Output Discharge
-...
