EM8569

PWM Converter

EM8569 Features

* more protection like Over Load Protection (OLP) and Over Voltage Protection (OVP) to prevent circuit damage occurred under abnormal conditions. The EM8569 also has line under-voltage protection (Brown-out Protection). Features 700V High Voltage Start up Circuit Current Mode Control Soft Start Funct

EM8569 General Description

EM8569 is a high performance, low cost, HV Start-up, current mode PWM converter with green mode power saving. The EM8569 integrates functions of Soft Start (SS), Under Voltage Lockout (UVLO), Leading Edge Blanking (LEB), internal Over Temperature Protection (OTP), and internal slope compensation. Th.

EM8569 Datasheet (305.47 KB)

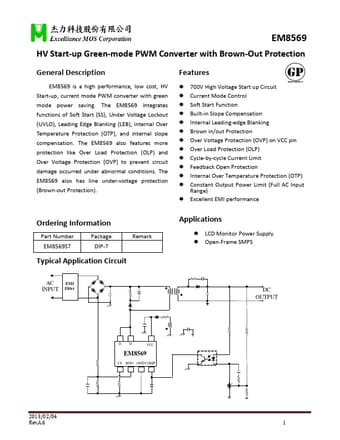

Preview of EM8569 PDF

Datasheet Details

Part number:

EM8569

Manufacturer:

Excelliance MOS

File Size:

305.47 KB

Description:

Pwm converter.
