EMP26P03H - Single P-Channel Logic Level Enhancement Mode Field Effect Transistor

Excelliance MOS

📥 Download Datasheet

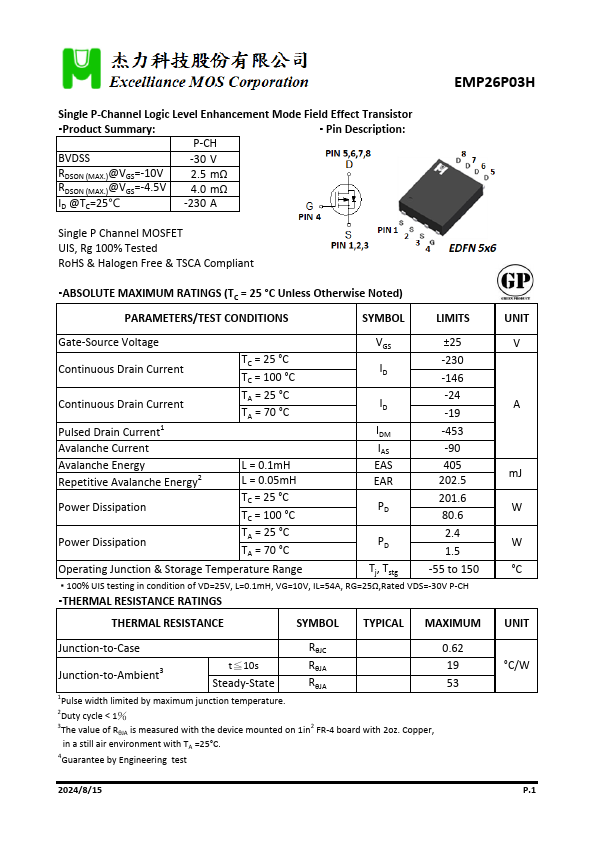

EMP26P03H Datasheet Preview — Preview of EMP26P03H PDF

Datasheet Details

Part number	EMP26P03H
Manufacturer	Excelliance MOS
File Size	356.83 KB
Description	Single P-Channel Logic Level Enhancement Mode Field Effect Transistor
Datasheet	EMP26P03H-ExcellianceMOS.pdf

EMP26P03H Product details

Description

P-CH BVDSS -30 V RDSON (MAX.)@VGS=-10V RDSON (MAX.)@VGS=-4.5V ID @TC=25℃ 2.5 mΩ 4.0 mΩ -230 A Single P Channel MOSFET UIS, Rg 100% Tested RoHS & Halogen Free & TSCA Compliant ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltage VGS ±25 Continuous Drain Current TC = 25 °C TC = 100 °C ID -230 -146 Continuous Drain Current TA = 25 °C TA = 70 °C ID -24 -19 Pulsed Drain Current1 IDM -453 Avalanche Curr
