1N5366B
1N5366B is 5.0W Glass Passivated Zener Diodes manufactured by FAGOR.
- Part of the 1N5343B comparator family.
- Part of the 1N5343B comparator family.

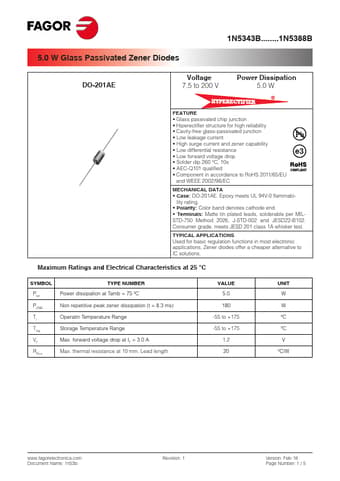

1N5343B........1N5388B
5.0 W Glass Passivated Zener Diodes
DO-201AE
Voltage 7.5 to 200 V
Power Dissipation 5.0 W
FEATURE
- Glass passivated chip junction
- Hiperectifier structure for high reliability
- Cavity-free glass-passivated junction
- Low leakage current
- High surge current and zener capability
- Low differential resistance
- Low forward voltage drop
- Solder dip 260 ºC, 10s
- AEC-Q101 qualified
- ponent in accordance to RoHS 2011/65/EU and WEEE 2002/96/EC
MECHANICAL DATA
- Case: DO-201AE. Epoxy meets UL 94V-0 flammabi- lity rating.
- Polarity: Color band denotes cathode end.
- Terminals: Matte tin plated leads, solderable per MILSTD-750 Method 2026, J-STD-002 and...
