1N5392GP, 1N5391GP Datasheet - FAGOR

1N5392GP - 1.5 Amp. Glass Passivated Junction Rectifier

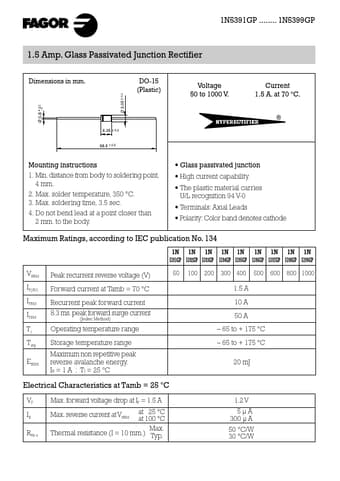

1N5391GP 1N5399GP 1.5 Amp. Glass Passivated Junction Rectifier Dimensions in mm. DO-15 (Plastic) Voltage 50 to 1000 V. Current 1.5 A. at 70 °C. 6.35 ± 0.2 58.5 ± 0.5 ® Mounting instructions 1. Min. distance from body to soldering point, 4 mm. 2. Max. solder temperature, 350 °C. 3. Max. soldering time, 3.5 sec. 4. Do not bend lead at a point closer than 2 mm. to the body. Glass passivated junction High current capability The plastic material carries U/L rec.

1N5391GP-FAGOR.pdf

This datasheet PDF includes multiple part numbers: 1N5392GP, 1N5391GP. Please refer to the document for exact specifications by model.
1N5392GP Datasheet Preview Page 2

Datasheet Details

Part number:

1N5392GP, 1N5391GP

Manufacturer:

FAGOR

File Size:

36.89 KB

Description:

1.5 amp. glass passivated junction rectifier.

Note:

This datasheet PDF includes multiple part numbers: 1N5392GP, 1N5391GP.
Please refer to the document for exact specifications by model.
