B250C1000 Datasheet - FAGOR

B250C1000 1 Amp. Glass Passivated Bridge Rectifier

B40C1000B380C1000 1 Amp. Glass Passivated Bridge Rectifier Dimensions in mm. Sufflix "A" "B" L ± 0.5 4 3 Voltage 100 to 900 V. Current 1.0 A ® Ø 0.8 ± 0.05 Ø 0.8 ± 0.05 Glass Passivated Junction Case: Epoxy encapsulation Terminals: Radial leads Ideal for P.C.B. Lead and polarity identifications Maximum Ratings, according to IEC publication No. 134 B40 B80 C1000 C1000 VRRM Peak Recurrent Reverse Voltage (V) VRMS Maximum RMS Voltage (V) 100 200 .

B250C1000-FAGOR.pdf

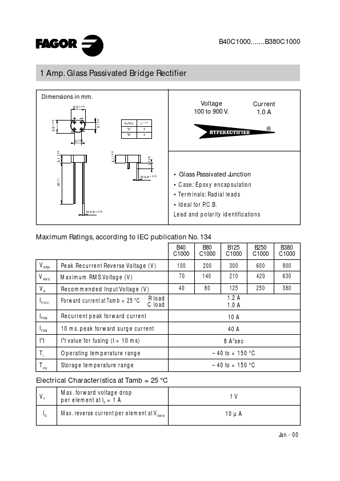

Preview of B250C1000 PDF
B250C1000 Datasheet Preview Page 2

Datasheet Details

Part number:

B250C1000

Manufacturer:

FAGOR

File Size:

15.69 KB

Description:

1 amp. glass passivated bridge rectifier.
