FS2K, FS2A 1.5 Amp. Surface Mount Glass Passivated Rectifier

FS2K Description

FS2AFS2M 1.5 Amp.Surface Mount Glass Passivated Rectifier DO-214AA (SMB) Voltage 50 V to 1000 V Current 1.5 A R .

FS2K Features

* • Low profile package • Ideal for automated placement • Low power losses, high efficiency • High surge current capability • Cavity-free glass-passivated junction • Low forward voltage drop • Solder dip 260ºC, 10s • AEC-Q101 qualified • Component in accordance to RoHS 2011/65/EC and WEEE 2002/96/EC •

FS2K Applications

* Used in general purpose rectification of power supplies, inverters, converters and freewhee

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FS2K, FS2A. Please refer to the document for exact specifications by model.

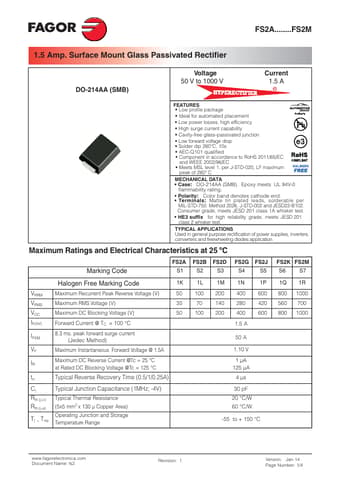

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FS2K, FS2A
Manufacturer
FAGOR
File Size
274.66 KB
Datasheet
FS2A-FAGOR.pdf
Description
1.5 Amp. Surface Mount Glass Passivated Rectifier
Note
This datasheet PDF includes multiple part numbers: FS2K, FS2A.
Please refer to the document for exact specifications by model.
