RGP15B 1.5 Amp. Glass Passivated Fast Recovery Rectifier

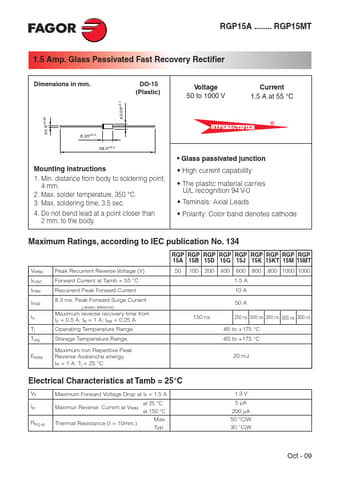

RGP15A RGP15MT 1.5 Amp. Glass Passivated Fast Recovery Rectifier Dimensions in mm. DO-15 (Plastic) Voltage 50 to 1000 V Current 1.5 A at 55 °C ø0.8±0.05 ø3.05±0.1 6.35±0.2 58.5±0.5 Mounting instructions 1. Min. distance from body to soldering point, 4 mm. 2. Max. solder temperature, 350 °C. 3. Max. soldering time, 3.5 sec. 4. Do not bend lead at a point closer than 2 mm. to the body. R Glass passivated junction High current capability The plastic material c.

RGP15A-FAGOR.pdf

RGP15B Datasheet Preview — This datasheet PDF includes multiple part numbers: RGP15B, RGP15A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RGP15B, RGP15A

Manufacturer:

FAGOR

File Size:

452.04 KB

Description:

1.5 amp. glass passivated fast recovery rectifier.

Note:

This datasheet PDF includes multiple part numbers: RGP15B, RGP15A.
Please refer to the document for exact specifications by model.
