SFA1608G, SFA1604G, 16.0 AMPS. Glass Passivated Ultrafast Recovery Rectifiers

SFA16G 16.0 Amp.Glass Passivated Ultrafast Recovery Rectifier TO-220AC 1 2 1 2 Case Case Positive Voltage 200 to 600 V Current 16.0 A .

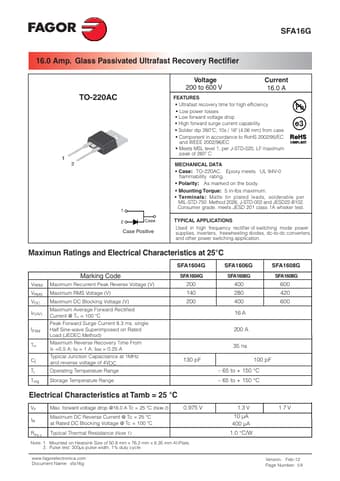

datasheet Preview Page 1 from Datasheet4u.com

SFA1604G-FAGOR.pdf

SFA1608G Datasheet Preview — This datasheet PDF includes multiple part numbers: SFA1608G, SFA1604G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SFA1608G, SFA1604G

Manufacturer:

FAGOR

File Size:

267.42 KB

Description:

16.0 AMPS. Glass Passivated Ultrafast Recovery Rectifiers

Note:

This datasheet PDF includes multiple part numbers: SFA1608G, SFA1604G.
Please refer to the document for exact specifications by model.

Features

* Ultrafast recovery time for high efficiency Low power losses Low forward voltage drop High forward surge current capability Solder dip 260ºC, 10s / 16" (4.06 mm) from case Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC Meets MSL level 1, per J-STD-020, LF maximum peak o

Applications

* Used in high frequency rectifier of switching mode power supplies, inverters, freewheeling diodes, dc-to-dc converters, and other power switching application. Maximun Ratings and Electrical Characteristics at 25°C VRRM VRMS VDC IF(AV) IFSM Trr Cj Tj Tstg Marking Code Maximum Recurrent Peak Revers
