SK515B, SK52B SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SK515B Description

SK52B - SK515B 5.0 Amp.Surface Mount Schottky Barrier Rectifier DO-214AA (SMB) Voltage 20 V to 150 V Current 5.0 A .

SK515B Features

* • Low profile package • Ideal for automated placement • Low power losses, high efficiency • High surge current capability • Guarding for overvoltage protection • Low forward voltage drop • Solder dip 260ºC, 10s • AEC-Q101 qualified • Component in accordance to RoHS 2011/65/EU and WEEE 2002/96/EC • M

SK515B Applications

* Used in low voltage high frequency inverters, freewheeling, dc-to-dc converters, and polarity pro

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SK515B, SK52B. Please refer to the document for exact specifications by model.

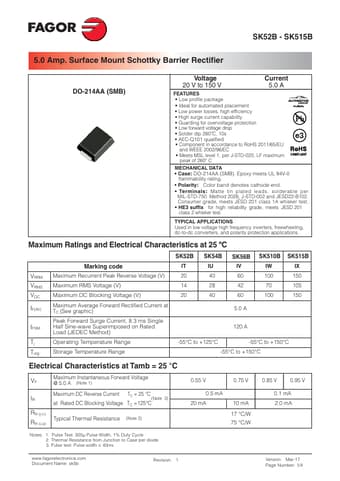

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SK515B, SK52B
Manufacturer
FAGOR
File Size
281.07 KB
Datasheet
SK52B-FAGOR.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SK515B, SK52B.
Please refer to the document for exact specifications by model.
