SR204 - 2.0 AMPS. Schottky Barrier Rectifiers

FAGOR

Download the SR204 datasheet PDF. This datasheet also covers the SR202 variant, as both devices belong to the same 2.0 amps. schottky barrier rectifiers family and are provided as variant models within a single manufacturer datasheet.

Key Features

Low power losses, high efficiency High surge current capability High frequency operation Guarding for overvoltage protection Low forward voltage drop Solder dip 260ºC, 10s Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC Halogen-free available according to IEC 61249-2-21 definition.

📥 Download Datasheet

SR204 2.0 amps. schottky barrier rectifiers by FAGOR - Datasheet Preview — Note: The manufacturer provides a single datasheet file (SR202-FAGOR.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	SR204
Manufacturer	FAGOR
File Size	278.90 KB
Description	2.0 AMPS. Schottky Barrier Rectifiers
Datasheet	SR204 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
SR204	Schottky Barrier Rectifier	MIC
SR204	Germanium Diodes	Semiconductors
SR204	2.0 AMPS. SCHOTTKY BARRIER RECTIFIERS	Jinan Gude Electronic Device
SR204	2 Amp Schottky Barrier Rectifier	Micro Commercial Components
SR204	SCHOTTKY BARRIER RECTIFIERS	Mospec Semiconductor

Other Datasheets by FAGOR

Part Number	Description
SR202	2.0 AMPS. Schottky Barrier Rectifiers
SR206	2.0 AMPS. Schottky Barrier Rectifiers
SR210	2.0 AMPS. Schottky Barrier Rectifiers
SR215	2.0 AMPS. Schottky Barrier Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

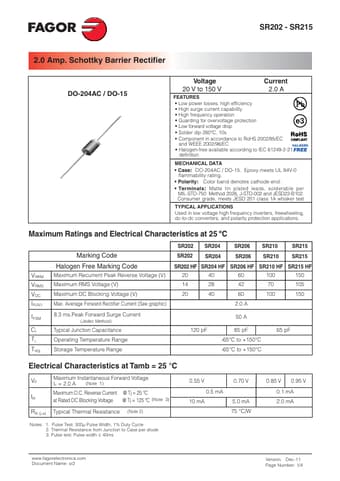

SR202 - SR215 2.0 Amp. Schottky Barrier Rectifier DO-204AC / DO-15 Voltage 20 V to 150 V Current 2.0 A FEATURES Low power losses, high efficiency High surge current capability High frequency operation Guarding for overvoltage protection Low forward voltage drop Solder dip 260ºC, 10s Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC Halogen-free available according to IEC 61249-2-21 definition MECHANICAL DATA Case: DO-204AC / DO-15. Epoxy meets UL 94V-0 flammability rating. Polarity: Color band denotes cathode end. Terminals: Matte tin plated leads, solderable per MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.
