ZY20GP, ZY24GP Datasheet - FAGOR

ZY20GP - 2W Glass Passivated Zener Diode

ZY6V2GPZY200GP 2 W Glass Passivated Zener Diode Dimensions in mm.

DO-15 (Plastic) Voltage 6.2 to 200 V.

Power 2.0 W ® 6.35 ± 0.2 58.5 ± 0.5 Mounting instructions 1.

Min.

distance from body to soldering point, 4 mm.

2.

Max.

solder temperature, 350 °C.

3.

Max.

soldering time, 3.5 sec.

4.

Do not bend lead at a point closer than 2 mm.

to the body.

Glass passivated junction The plastic material carries U/L recognition 94 V-0 Terminals: Axial Leads Polari

ZY24GP_FAGOR.pdf

This datasheet PDF includes multiple part numbers: ZY20GP, ZY24GP. Please refer to the document for exact specifications by model.

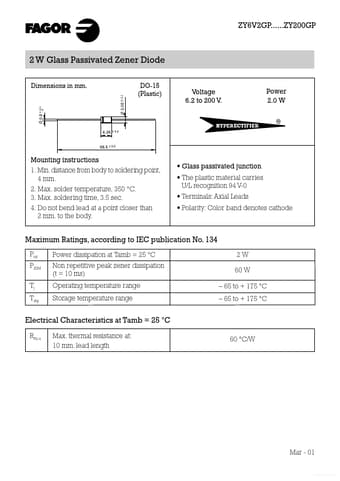

ZY20GP Datasheet Preview Page 2 ZY20GP Datasheet Preview Page 3
