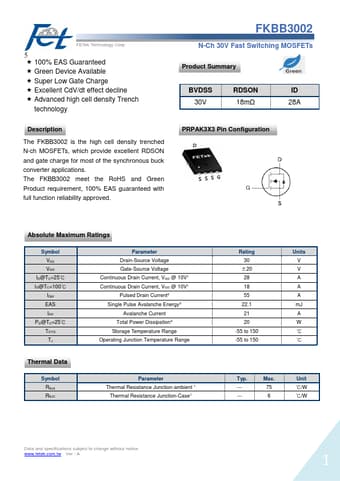

FKBB3002
Description
The FKBB3002 is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications. The FKBB3002 meet the Ro HS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
N-Ch 30V Fast Switching MOSFETs
Product Summary
BVDSS
RDSON
30V
18mΩ
28A
PRPAK3X3 Pin Configuration
Absolute Maximum Ratings
Symbol VDS VGS
ID@TC=25℃ ID@TC=100℃
IDM EAS IAS PD@TC=25℃ TSTG
Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current, VGS @ 10V1 Continuous Drain Current, VGS @ 10V1 Pulsed Drain Current2 Single Pulse Avalanche Energy3
Avalanche Current Total Power Dissipation4 Storage Temperature Range Operating Junction Temperature Range
Thermal Data
Symbol RθJA RθJC
Parameter Thermal Resistance Junction-ambient 1
Thermal Resistance Junction-Case1
Rating 30
±20 28 18 55 22.1 21 20
-55 to 150 -55 to 150
Units V V A A A m J A W ℃ ℃
Typ....
