CMS6416LAx-75xx 64M(4Mx16) Low Power SDRAM

CMS6416LAx-75xx Description

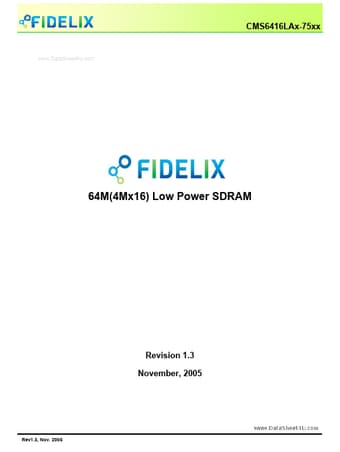

CMS6416LAx-75xx www.DataSheet4U.com 64M(4Mx16) Low Power SDRAM Revision 1.3 November, 2005 Rev1.3, Nov.2005 CMS6416LAx-75xx Document Title www.D.
Add commercial & extended temperature options Add package dimension Extend Vddmax limit for 2.

CMS6416LAx-75xx Features

* - Functionality www. DataSheet4U. com - Standard SDRAM Functionality - Programmable burst lengths : 1, 2, 4, 8, or full page - JEDEC Compatibility - Low Power Features - Low voltage power supply : 2.5V/3.0V - Auto TCSR(Temperature Compensated Self Refresh) - Partial Array Self Refresh power-saving mod

CMS6416LAx-75xx Applications

* such as wireless handsets. The device is compatible with the JEDEC standard LP-SDRAM specifications. Logic Block Diagram CKE CLK /CS /WE /CAS /RAS Bank 3 Bank 2 Bank 1 Bank 0 Memory Array 4Kx4K Control Logic Refresh Counter Row Add Mux Mode Reg Enhanced Mode Reg Bank 0 Bank Row0 Row Addr Addr L
