FM25M4SA 1.8V 256M-BIT Serial Flash Memory

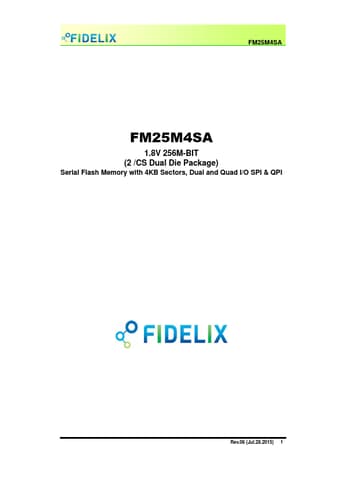

FM25M4SA FM25M4SA 1.8V 256M-BIT (2 /CS Dual Die Package) Serial Flash Memory with 4KB Sectors, Dual and Quad I/O SPI & QPI Rev.06 (Jul.28.2015) 1 FM25M4SA Documents title 256M bit Serial Flash Memory with 4KB Sectors, Dual and Quad I/O SPI &QPI 2 /CS 128M QPI Dual Die Package Revision History Revision No. History 0.0 Initial Draft 0.1 Add 6x5 WSON POD 0.2 Correct Typo 0.3 Correct Typo Revised tCLQX min 0.4 Revised, tSUS max Revised ICC1 max 0.5 Correct Typo of PKG Dimension Revised .

FM25M4SA Features

* SPI Flash Memory －256M-bit / 32M

* byte Serial Flash －256-bytes per programmable page －4K-bit secured OTP －2 /CS

* Standard, Dual or Quad SPI and QPI －Standard SPI: CLK, /CS, DI, DO, /WP, /Hold －Dual SPI: CLK, /CS, IO0, IO 1, /WP, /Hold －Q
