FT25C08A - SPI Serial EEPROM

FT25C08A Description

FMD Confidential Fremont Micro Devices FT25C08A DS SPI Serial EEPROM 8K (8-bit wide) .
The FT25C08A is 8192 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM.

FT25C08A Features

* Serial Peripheral Interface (SPI) Compatible
* Supports SPI Modes 0 (0,0) and 3 (1,1)
* Data Sheet Describes Mode 0 Operation
* Low voltage and low power operations
* FT25C08A VCC = 1.8V to 5.5V
* 20MHz clock rate (5V)
* Maximum Standby current < 1µA (typically 0.02µA a

FT25C08A Applications

* These devices are available in standard 8-lead DIP, 8-lead SOP and 8-lead TSSOP packages. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The HOLD pin may be used to suspend any serial communication without resetting the serial sequence. While the device

📥 Download Datasheet

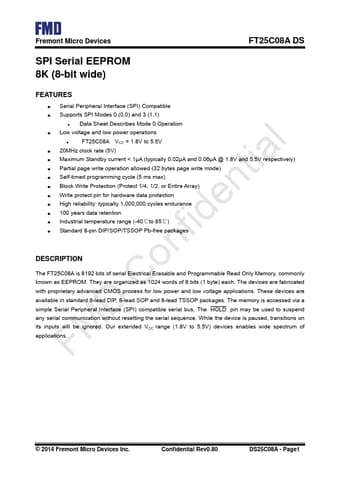

Preview of FT25C08A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FT25C08A
Manufacturer
FMD
File Size
398.95 KB
Datasheet
FT25C08A-FMD.pdf
Description
SPI Serial EEPROM
