FRS10C-S12DC12V - RELAY

This page provides the datasheet information for the FRS10C-S12DC12V, a member of the FRS10 RELAY family.

Datasheet Summary

Features

  • Subminiature light weight relay Printing circuit terminal Low coil power consumption Switching capacity up to 12A with AGSNO2 contacts Dust cover or sealed type c Recognized File No. : E141516(N).

📥 Download Datasheet

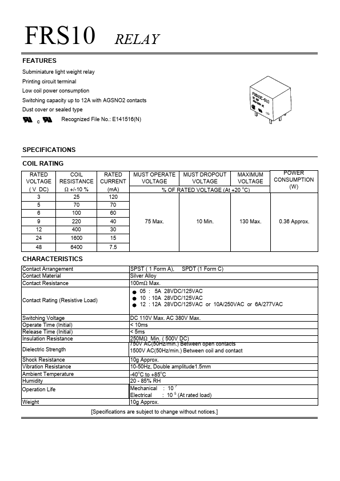

Datasheet preview – FRS10C-S12DC12V

Datasheet Details

Part number FRS10C-S12DC12V
Manufacturer FORWARD
File Size 113.20 KB
Description RELAY
Datasheet download datasheet FRS10C-S12DC12V Datasheet
Additional preview pages of the FRS10C-S12DC12V datasheet.

📁 Similar Datasheet

  • FRS10C-S12 - RELAY (ETC)
  • FRS10 - 1.0 Amp FAST RECOVERY RECTIFIERS (First Components International)
  • FRS10 - RELAY (ETC)
  • FRS11 - (FRS10 - FRS110) 1.0 Amp FAST RECOVERY RECTIFIERS (First Components International)
  • FRS110 - (FRS10 - FRS110) 1.0 Amp FAST RECOVERY RECTIFIERS (First Components International)
  • FRS13 - (FRS10 - FRS110) 1.0 Amp FAST RECOVERY RECTIFIERS (First Components International)
  • FRS130D - N-Channel Power MOSFET (Intersil)
  • FRS130H - N-Channel Power MOSFET (Intersil)
  • FRS130R - N-Channel Power MOSFET (Intersil)
  • FRS14 - (FRS10 - FRS110) 1.0 Amp FAST RECOVERY RECTIFIERS (First Components International)
Other Datasheets by FORWARD

Full PDF Text Transcription

Click to expand full text
FRS10 RELAY FEATURES Subminiature light weight relay Printing circuit terminal Low coil power consumption Switching capacity up to 12A with AGSNO2 contacts Dust cover or sealed type c Recognized File No.: E141516(N) SPECIFICATIONS COIL RATING RATED VOLTAGE ( V DC) 3 5 6 9 12 24 48 COIL RESISTANCE Ω +/-10 % 25 70 100 220 400 1600 6400 RATED CURRENT (mA) 120 70 60 40 30 15 7.5 MUST OPERATE MUST DROPOUT MAXIMUM VOLTAGE VOLTAGE VOLTAGE % OF RATED VOLTAGE (At +20 oC) 75 Max. 10 Min. 130 Max. POWER CONSUMPTION (W) 0.36 Approx. CHARACTERISTICS Contact Arrangement Contact Material Contact Resistance Contact Rating (Resistive Load) SPST ( 1 Form A), SPDT (1 Form C) Silver Alloy 100mΩ Max.
