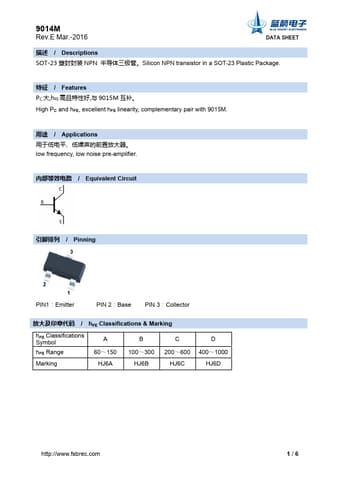

9014M
Features
PC 大,h FE 高且特性好,与 9015M 互补。 High PC and h FE, excellent h FE linearity, plementary pair with 9015M.
用途 / Applications
用于低电平、低噪声的前置放大器。 low frequency, low noise pre-amplifier.
内部等效电路 / Equivalent Circuit
引脚排列 / Pinning
2 1
PIN1：Emitter
PIN 2：Base PIN 3：Collector
放大及印章代码 / h FE Classifications & Marking h FE Classifications Symbol h FE Range
A 60～150
B 100～300
C 200～600
Marking
HJ6A
HJ6B
HJ6C
D 400～1000
HJ6D http://.fsbrec.
1/6
Rev.E Mar.-2016
极限参数 / Absolute Maximum Ratings(Ta=25℃)
参数 Parameter Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature...
