PQ3230 - POWER TRANSFORMER MODULES

PQ3230 Description

http://www.fpe.com.cn PQ3230 SERIES POWER TRANSFORMER MODULES PRODUCT OVERVIEW:THT POWER THANSFORMERS Characteristics Applications High insulation.

PQ3230 Applications

* High insulation type High efficiency IEC60950 Compatible Operating temperature range:-40℃to +85℃ Lighting CMC industrial Controls White Goods Telecom DC/DC Converter Bobbin Winding Area Width(mm) Build(mm) 18.69 5.26 Perimeter(mm) 50.27 CORE DATA Ae(mm^2) 167 Ve(mm^3) 12474.9 Le(mm) 74.7

📥 Download Datasheet

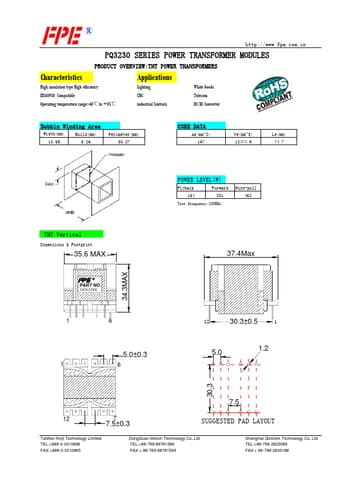

Preview of PQ3230 PDF

Datasheet Details

Part number
PQ3230
Manufacturer
FPE
File Size
124.46 KB
Datasheet
PQ3230-FPE.pdf
Description
POWER TRANSFORMER MODULES
