FT2232HP - High Speed USB Bridge

Product Overview

FTDI

📥 Download Datasheet

FT2232HP High Speed USB Bridge by FTDI - Datasheet Preview — Datasheet preview – FT2232HP

Datasheet Details

Part number	FT2232HP
Manufacturer	FTDI
File Size	2.57 MB
Description	High Speed USB Bridge
Datasheet	FT2232HP Datasheet
Note	This datasheet PDF includes multiple part numbers: FT2232HP, FT2233HP. Please refer to the document for exact specifications by model.

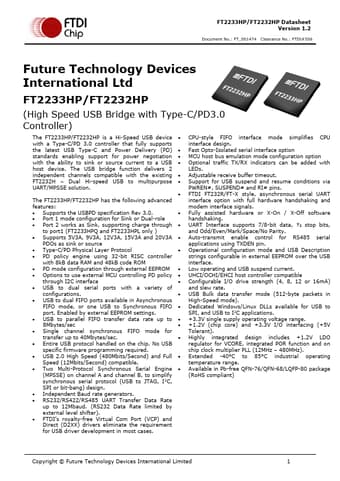

Additional preview pages of the FT2232HP datasheet.

Product details

Description

strings configurable in external EEPROM over the USB interface.

Features

Supports the USBPD specification Rev 3.0.
Port 1 mode configuration for Sink or Dual-role.
Port 2 works as Sink, supporting charge through.
to port1 (FT2233HPQ and FT2233HPL only ).
Supports 5V3A, 9V3A, 12V3A, 15V3A and 20V3A.
PDOs as sink or source.
Type-C/PD Physical Layer Protocol.
PD policy engine using 32-bit RISC controller with 8kB data RAM and 48kB code ROM.
PD mode configu.
