FT245RN - USB FIFO

FT245RN Description

Future Technology Devices International Ltd.FT245RN USB FIFO IC Datasheet FT245RN USB FIFO IC Datasheet Version 1.2 Document No.: FT_001522 Clearanc.

FT245RN Features

* Single chip USB to parallel FIFO bidirectional
* data transfer interface.
* Entire USB protocol handled on the chip. No
* USB specific firmware programming required.
* Fully integrated 1024-bit EEPROM storing device descriptors and FIFO I/O

FT245RN Applications

* Document No. : FT_001522 Clearance No. : FTDI#572
* Upgrading Legacy Peripherals to USB
* USB Industrial Control
* Cellular and Cordless Phone USB data transfer cables and interfaces
* Interfacing MCU/PLD/FPGA based designs to USB
* USB Audio and Low Bandwid

📥 Download Datasheet

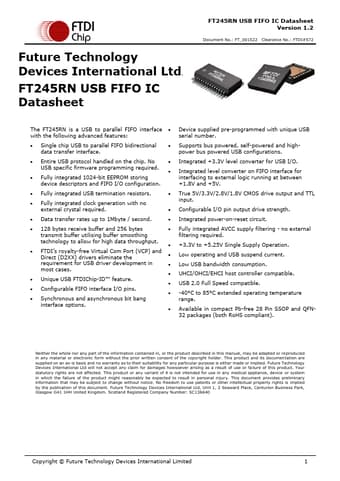

Preview of FT245RN PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FT245RN
Manufacturer
FTDI
File Size
1.24 MB
Datasheet
FT245RN-FTDI.pdf
Description
USB FIFO
