FT260 - HID-class USB to UART/I2C Bridge

FTDI

📥 Download Datasheet

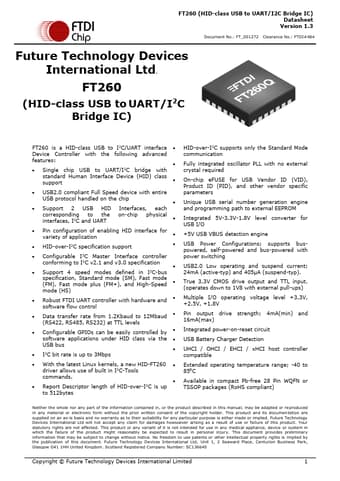

FT260 Datasheet Preview — Preview of FT260 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FT260
Manufacturer	FTDI
File Size	2.25 MB
Description	HID-class USB to UART/I2C Bridge
Datasheet	FT260-FTDI.pdf

FT260 Product details

Features

Single chip USB to UART/I2C bridge with standard Human Interface Device (HID) class support.
USB2.0 compliant Full Speed device with entire USB protocol handled on the chip.
Support 2 USB HID Interfaces, each corresponding to the on-chip physical interfaces, I2C and UART.
Pin configuration of enabling HID interface for variety of.
