SCTX5A - REMOTE CONTROLLER

SCTX5A Description

SHENZHEN FUMAN ELECTRONICS CO., LTD.SCTX5A/RX5A(：S&CIC00238) REMOTE CONTROLLER WITH NINE FUNCTIONS .
The SCTX5A/RX5A are a pair of CMOS LSIs designed for remote controlled car applications.

SCTX5A Features

* Wide operating SCTX5A voltage range: 3.6V to 12V
* SCRX5A voltage range: 3.0V to 12V
* SCTX5A very low Stand-by current
* Auto power-OFF function for SCTX5A
* Few external components needed
* SCRX5A built-in 3.6V zener
* 9-function remote controller controlling forwar

SCTX5A Applications

* The SXTX5A/RX5A have nine control keys controlling the motions ( i. e. Forward. Backward. Rightward. Leftward. Trigger 1-4 functions and Turbo function ) of the remote controlled car. SCTX5A/RX5A have Forward ( Backward ) combined with the Turbo application. During normal operation without Turbo.

📥 Download Datasheet

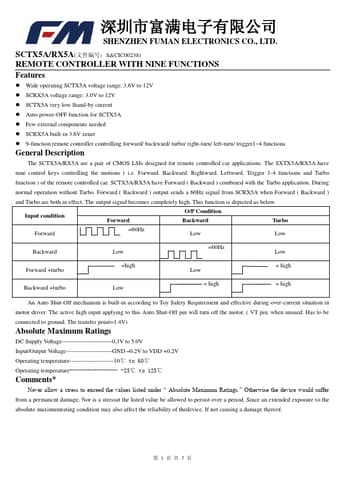

Preview of SCTX5A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SCTX5A
Manufacturer
FUMAN
File Size
155.85 KB
Datasheet
SCTX5A-FUMAN.pdf
Description
REMOTE CONTROLLER
