BA157GP Datasheet - Fagor

BA157GP 1 Amp Glass Passivated Fast Recovery Rectifier

U Fast Recovery Rectifier 1 Amp. Glass Passivated 4 t Dimensions in mm. m o .c BA157GPBA159GP w w a D . w S a t e e h DO-41 (Plastic) Voltage 400 to 1000 V. Current 1.0 A. at 50 °C. ® 5 +0.2 -0 58.5 ± 0.5 Mounting instructions 1. Min. distance from body to soldering point, 4 mm. 2. Max. solder temperature, 350 °C. 3. Max. soldering time, 3.5 sec. 4. Do not bend lead at a point closer than 2 mm. to the body. Glass passivated junction High current capability <.

BA157GP Datasheet (67.18 KB)

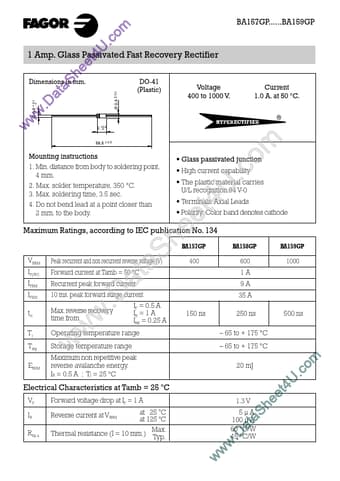

Preview of BA157GP PDF
BA157GP Datasheet Preview Page 2

Datasheet Details

Part number:

BA157GP

Manufacturer:

Fagor

File Size:

67.18 KB

Description:

1 amp glass passivated fast recovery rectifier.
