FBI1.5B4S1, FBI15A4S1 Datasheet - Fagor

FBI1.5B4S1 - (FBI1.5x4S1) 1.5A Glass Passivated Bridge Rectifier

FBI1.5A4S1FBI1.5M4S1 1.5 Amp.

Glass Passivated Bridge Rectifier Dimensions in mm.

20 3.5 Plastic Case Voltage 50 to 1000 V.

Current 1.5 A.

www.DataSheet4U.com ® _ 0.8 + 0.05 + Glass Passivated Junction Chips.

L 13.5 7 suffix 4 1 UL recognized under component index file number E130180.

0.5 4 4 4 Lead and polarity identifications.

Case: Molded Plastic.

Ideal for printed circuit board (P .C.B.).

The plastic material

FBI15A4S1_Fagor.pdf

This datasheet PDF includes multiple part numbers: FBI1.5B4S1, FBI15A4S1. Please refer to the document for exact specifications by model.

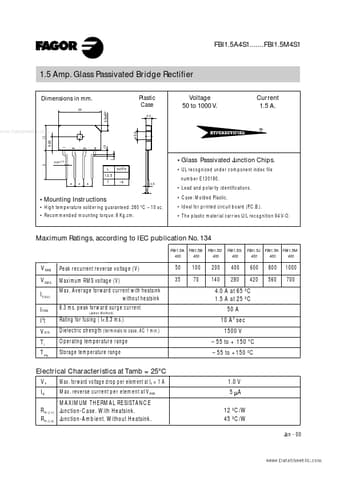

FBI1.5B4S1 Datasheet Preview Page 2

Datasheet Details

Part number:

FBI1.5B4S1, FBI15A4S1

Manufacturer:

Fagor

File Size:

61.56 KB

Description:

(fbi1.5x4s1) 1.5a glass passivated bridge rectifier.

Note:

This datasheet PDF includes multiple part numbers: FBI1.5B4S1, FBI15A4S1.
Please refer to the document for exact specifications by model.
