1N4305 - Small Signal Diode

📥 Download Datasheet

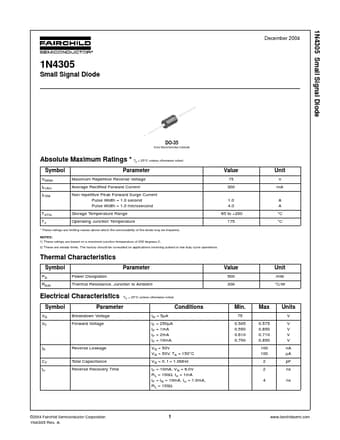

Datasheet preview – 1N4305

Datasheet Details

Part number 1N4305
Manufacturer Fairchild Semiconductor
File Size 25.59 KB
Description Small Signal Diode
Datasheet download datasheet 1N4305 Datasheet
Additional preview pages of the 1N4305 datasheet.

📁 Similar Datasheet

  • 1N4305 - SWITCHING RECTFIERS (Digitron Semiconductors)
  • 1N43 - 1N43 1N7 SERIES ZENER DIODES (Leshan Radio Company)
  • 1N4361 - Silicon Rectifiers (Semitronics)
  • 1N4370 - SILICON 500 mW ZENER DIODES (Microsemi)
  • 1N4370 - SILICON PLANAR ZENER DIODES (Digitron Semiconductors)
  • 1N4370 - GLASS ZENER DIODES (Motorola)
  • 1N4370 - GLASS ZENER DIODES (New Jersey Semi-Conductor)
  • 1N4370A - 500 mW DO-35 Hermetically Sealed Glass Zener Voltage Regulators (ON Semiconductor)
  • 1N4370A - DOUBLE PLUG CONSTRUCTION (Compensated Deuices Incorporated)
  • 1N4370A - 500 mW DO-35 Glass Zener Voltage Regulator Diodes (MotorolaInc)
Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text
1N4305 Small Signal Diode 1N4305 Small Signal Diode December 2004 DO-35 Color Band Denotes Cathode Absolute Maximum Ratings * Ta = 25°C unless otherwise noted Symbol Parameter Value VRRM IF(AV) IFSM Maximum Repetitive Reverse Voltage Average Rectified Forward Current Non-repetitive Peak Forward Surge Current Pulse Width = 1.0 second Pulse Width = 1.0 microsecond 75 300 1.0 4.0 TSTG TJ Storage Temperature Range Operating Junction Temperature * These ratings are limiting values above which the serviceability of the diode may be impaired. -65 to +200 175 NOTES: 1) These ratings are based on a maximum junction temperature of 200 degrees C. 2) These are steady limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
