1N459 Small Signal Diode

1N459/A Small Signal Diode November 2004 1N459/A Small Signal Diode DO-35 Color Band Denotes Cathode Absolute Maximum Ratings Symbol VRRM IF(AV) IFSM Ta = 25°C unless otherwise noted Parameter Maximum Repetitive Reverse Voltage Average Rectified Forward Current Non-repetitive Peak Forward Surge Current Pulse Width = 1.0 second Pulse Width = 1.0 microsecond Storage Temperature Range Operating Junction Temperature Value 200 500 1.0 4.0 -65 to +200 175 Unit V mA A A °C °C TSTG TJ

1N459 Datasheet (26.25 KB)

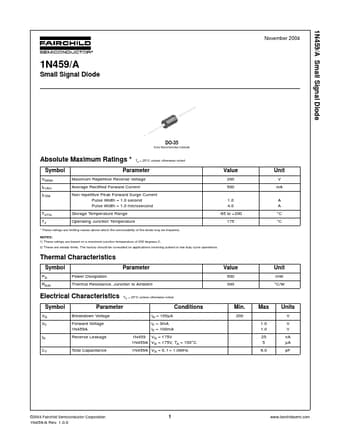

1N459 Datasheet Preview — Preview of 1N459 PDF

Datasheet Details

Part number:

1N459

Manufacturer:

Fairchild Semiconductor

File Size:

26.25 KB

Description:

Small signal diode.
