1N4680, 1N4678 Datasheet - Fairchild Semiconductor

1N4680 Zeners

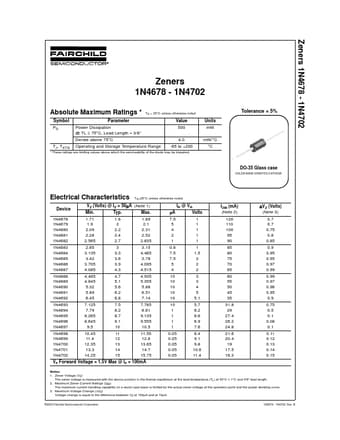

Zeners 1N4678 - 1N4702 Zeners 1N4678 - 1N4702 Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol Parameter Value PD Power Dissipation 500 @ TL ≤ 75°C, Lead Length = 3/8” Derate above 75°C 4.0 TJ, TSTG Operating and Storage Temperature Range -65 to +200 These ratings are limiting values above which the serviceability of the diode may be impaired. Units mW mW/°C °C Tolerance = 5% DO-35 Glass case COLOR BAND DENOTES CATHODE Electrical Characteristics TA=25°C.

1N4678-FairchildSemiconductor.pdf

1N4680 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N4680, 1N4678. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1N4680, 1N4678

Manufacturer:

Fairchild Semiconductor

File Size:

71.34 KB

Description:

Zeners.

Note:

This datasheet PDF includes multiple part numbers: 1N4680, 1N4678.
Please refer to the document for exact specifications by model.
