1N6000B, 1N5985B Datasheet - Fairchild Semiconductor

1N6000B - Zener Diodes

1N5985B - 1N6025B Zener Diodes 1N5985B - 1N6025B Zener Diodes Tolerance = 5% March 2010 DO-35 Glass case COLOR BAND DENOTES CATHODE Absolute Maximum Ratings TA=25°C unless otherwise noted Symbol Parameter Value Power Dissipation PD @ TL ≤ 75°C, Lead Length = 3/8” Derate above 75°C 500 4.0 TJ, TSTG Operating and Storage Temperature Range -65 to +200 These ratings are limiting values above which the serviceability of the diode may be impaired. Units mW mW/°C °C .

1N5985B-FairchildSemiconductor.pdf

This datasheet PDF includes multiple part numbers: 1N6000B, 1N5985B. Please refer to the document for exact specifications by model.

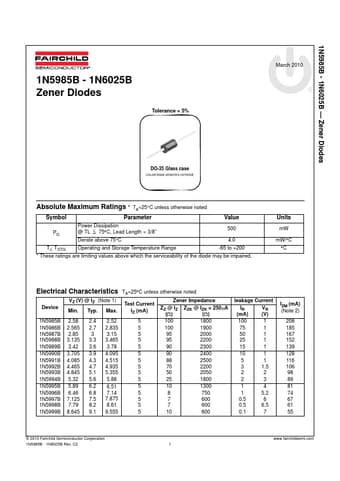

1N6000B Datasheet Preview Page 2 1N6000B Datasheet Preview Page 3

Datasheet Details

Part number:

1N6000B, 1N5985B

Manufacturer:

Fairchild Semiconductor

File Size:

134.13 KB

Description:

Zener diodes.

Note:

This datasheet PDF includes multiple part numbers: 1N6000B, 1N5985B.
Please refer to the document for exact specifications by model.
