2N5087 Datasheet (Fairchild Semiconductor) - PNP General Purpose Amplifier

2N5087, PNP General Purpose Amplifier

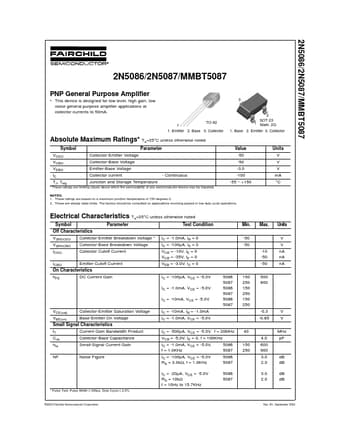

2N5086/2N5087/MMBT5087 2N5086/2N5087/MMBT5087 PNP General Purpose Amplifier This device is designed for low level, high gain, low noise general purpose amplifier applications at collector currents to 50mA.

1 1.

Emitter 2.

Base 3.

Collector TO-92 3 2 SOT-23 1 Mark: 2Q 1.

Base 2.

Emitter 3.

Collector Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCEO VCBO VEBO IC TJ, Tstg Parameter Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector cur
