555

Single Timer

555 Features

* High-Current Drive Capability: 200 mA

* Adjustable Duty Cycle

* Temperature Stability of 0.005%/°C

* Timing From μs to Hours

* Turn off Time Less Than 2 μs Applications

* Precision Timing

* Pulse Generation

* Delay Generation

555 General Description

The LM555 is a highly stable controller capable of producing accurate timing pulses. With a monostable operation, the delay is controlled by one external resistor and one capacitor. With astable operation, the frequency and duty cycle are accurately controlled by two external resistors and one capac.

555 Datasheet (268.17 KB)

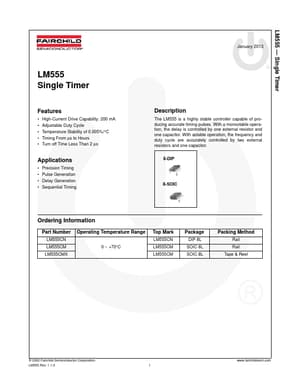

Preview of 555 PDF

Datasheet Details

Part number:

555

Manufacturer:

Fairchild Semiconductor

File Size:

268.17 KB

Description:

Single timer.
