5L0380R

Fairchild Power Switch(FPS)

5L0380R Features

* Precision Fixed Operating Frequency (100/67/50kHz)

* Low Start-up Current(Typ. 100uA)

* Pulse by Pulse Current Limiting

* Over Current Protection

* Over Voltage Protection (Min. 25V)

* Internal Thermal Shutdown Function

* Under Voltage Lockou

5L0380R General Description

The Fairchild Power Switch(FPS) product family is specially designed for an off-line SMPS with minimal external components. The Fairchild Power Switch(FPS) consists of a high voltage power SenseFET and a current mode PWM IC. Included PWM controller integrates the fixed frequency oscillator, the unde.

5L0380R Datasheet (685.05 KB)

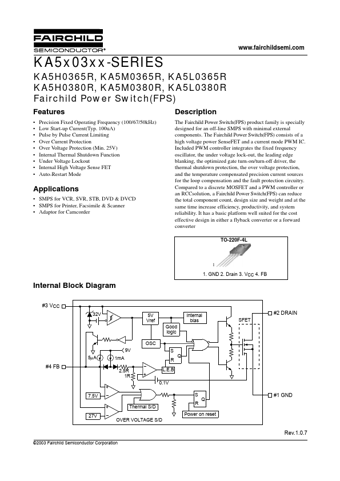

Preview of 5L0380R PDF

Datasheet Details

Part number:

5L0380R

Manufacturer:

Fairchild Semiconductor

File Size:

685.05 KB

Description:

Fairchild power switch(fps).
