5N50C

N-Channel MOSFET

5N50C Features

* 4.0A, 500V, RDS(on) = 1.4 Ω @VGS = 10 V Low gate charge ( typical 18nC) Low Crss ( typical 15pF) Fast switching 100% avalanche tested Improved dv/dt capability RoHS Compliant D D !

* ◀ ▲

* G S D-PAK FQD Series

5N50C General Description

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse i.

5N50C Datasheet (687.26 KB)

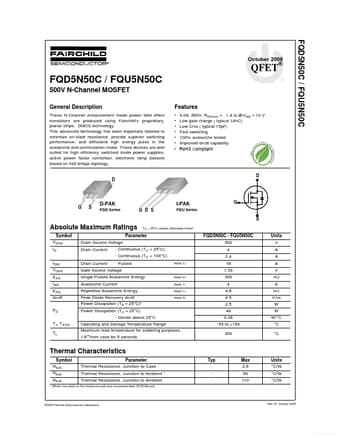

Preview of 5N50C PDF

Datasheet Details

Part number:

5N50C

Manufacturer:

Fairchild Semiconductor

File Size:

687.26 KB

Description:

N-channel mosfet.
