5Q0740RT Datasheet - Fairchild Semiconductor

5Q0740RT - KA5Q0740RT

The Fairchild Power Switch(FPS) product family is specially designed for an off-line SMPS with minimal external components.

The Fairchild Power Switch(FPS) consists of a high voltage power SenseFET and a current mode PWM IC.

The integrated PWM controller includes the fixed oscillator, the under volt

5Q0740RT Features

* Quasi Resonant Converter Controller

* Internal Burst Mode Controller for Stand-by Mode

* Pulse by Pulse Current Limiting

* Over Current Latch Protection

* Over Voltage Protection ( Vsync: Min. 11V )

* Internal Thermal Shutdown Function

* Unde

5Q0740RT-FairchildSemiconductor.pdf

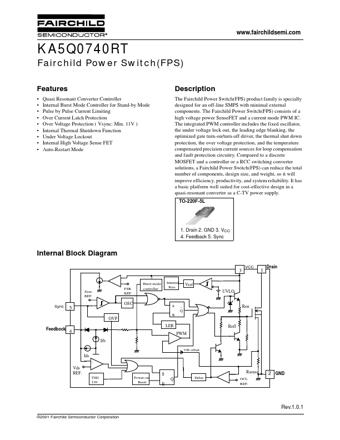

Preview of 5Q0740RT PDF
5Q0740RT Datasheet Preview Page 2 5Q0740RT Datasheet Preview Page 3

Datasheet Details

Part number:

5Q0740RT

Manufacturer:

Fairchild Semiconductor

File Size:

215.84 KB

Description:

Ka5q0740rt.
