6N135M - Single-Channel High Speed Transistor Optocouplers

Datasheet Summary

Description

The 6N135M, 6N136M, HCPL4503M, HCPL2530M, and HCPL2531M optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor for each channel.

Features

  • High Speed.
  • 1 MBit/s.
  • Dual-Channel: HCPL2530M, HCPL2531M.
  • CTR Guaranteed 0°C to 70°C.
  • No Base Connection for Improved Noise Immunity (HCPL4503M).
  • Superior CMR of 15,000 V/μs Minimum (HCPL4503M).
  • Safety and Regulatory Approvals.
  • UL1577, 5,000 VACRMS for 1 Minute.
  • DIN EN/IEC60747-5-5.

📥 Download Datasheet

Datasheet preview – 6N135M

Datasheet Details

Part number 6N135M
Manufacturer Fairchild Semiconductor
File Size 616.00 KB
Description Single-Channel High Speed Transistor Optocouplers
Datasheet download datasheet 6N135M Datasheet
Additional preview pages of the 6N135M datasheet.

📁 Similar Datasheet

  • 6N135M-H - Photocoupler (LITEON)
  • 6N135 - 8 PIN DIP HIGH SPEED 1Mbit/s TRANSISTOR PHOTOCOUPLER (Everlight)
  • 6N135 - High-Speed Optocouplers (Broadcom)
  • 6N135 - High Speed Optocouplers (LITE-ON)
  • 6N135 - High Speed Optocoupler (Vishay)
  • 6N135 - IRED & PHOTO-IC (Toshiba Semiconductor)
  • 6N135 - HIGH SPEED TRANSISTOR OPTOCOUPLERS (QT Optoelectronics)
  • 6N135 - General Purpose Type Photocoupler (Sharp Electrionic Components)
  • 6N135 - HIGH-SPEED 2.5 kV TRIOS OPTOCOUPLER (Siemens Semiconductor Group)
  • 6N135 - High Speed Optocouplers (HP)
Other Datasheets by Fairchild Semiconductor
  • 6N135 - HIGH SPEED TRANSISTOR OPTOCOUPLERS
  • 6N136 - HIGH SPEED TRANSISTOR OPTOCOUPLERS
  • 6N136M - Single-Channel High Speed Transistor Optocouplers
  • 6N137 - HIGH SPEED-10 MBit/s LOGIC GATE OPTOCOUPLERS
  • 6N137M - Single-Channel High-Speed 10 MBit/s Logic Gate Optocouplers
  • 6N138 - LOW INPUT CURRENT HIGH GAIN SPLIT DARLINGTON OPTOCOUPLERS
  • 6N139 - LOW INPUT CURRENT HIGH GAIN SPLIT DARLINGTON OPTOCOUPLERS

Full PDF Text Transcription

Click to expand full text

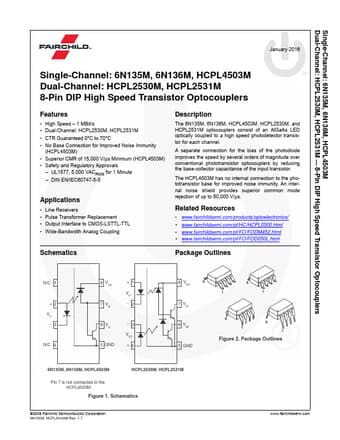

Single-Channel: 6N135M, 6N136M, HCPL4503M Dual-Channel: HCPL2530M, HCPL2531M — 8-Pin DIP High Speed Transistor Optocouplers January 2016 Single-Channel: 6N135M, 6N136M, HCPL4503M Dual-Channel: HCPL2530M, HCPL2531M 8-Pin DIP High Speed Transistor Optocouplers Features • High Speed – 1 MBit/s • Dual-Channel: HCPL2530M, HCPL2531M • CTR Guaranteed 0°C to 70°C • No Base Connection for Improved Noise Immunity (HCPL4503M) • Superior CMR of 15,000 V/μs Minimum (HCPL4503M) • Safety and Regulatory Approvals – UL1577, 5,000 VACRMS for 1 Minute – DIN EN/IEC60747-5-5 Applications • Line Receivers • Pulse Transformer Replacement • Output Interface to CMOS-LSTTL-TTL • Wide-Bandwidth Analog Coupling Description The 6N135M, 6N136M, HCPL4503M, HCPL2530M, and HCPL2531M optocouplers consist of an AlGaAs L
