74ACT16244 Datasheet - Fairchild Semiconductor

74ACT16244 16-Bit Buffer/Line Driver

The ACT16244 contains sixteen non-inverting buffers with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus oriented transmitter/receiver. The device is nibble controlled. Each nibble has separate 3-STATE control inputs which can be shorted together for full.

74ACT16244_FairchildSemiconductor.pdf

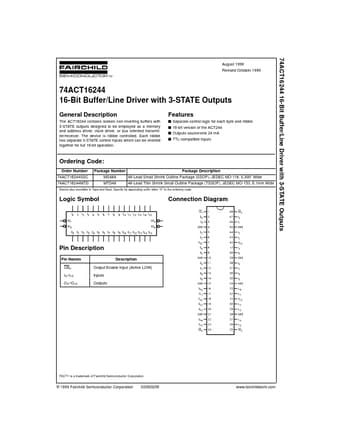

Preview of 74ACT16244 PDF
74ACT16244 Datasheet Preview Page 2 74ACT16244 Datasheet Preview Page 3

Datasheet Details

Part number:

74ACT16244

Manufacturer:

Fairchild Semiconductor

File Size:

79.45 KB

Description:

16-bit buffer/line driver.
