BDW24B - Hammer Drivers/ Audio Amplifiers

BDW24B Description

BDW24/A/B/C BDW24/A/B/C Hammer Drivers, Audio Amplifiers Applications * Power Darlington TR * Complement to BDW23, BDW23A, BDW23B and.

BDW24B Applications

* Power Darlington TR
* Complement to BDW23, BDW23A, BDW23B and BDW23C respectively 1 TO-220 2.Collector 3.Emitter 1.Base PNP Epitaxial Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO Parameter Collector-Base Voltage : BDW24 : BDW24A : BDW24B

📥 Download Datasheet

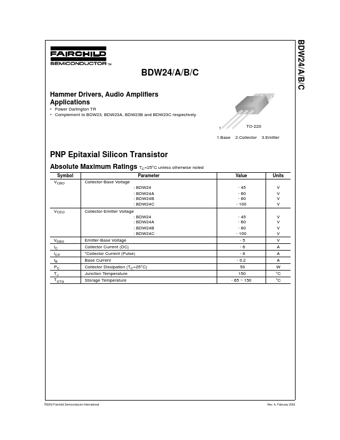

Preview of BDW24B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BDW24B
Manufacturer
Fairchild Semiconductor
File Size
38.93 KB
Datasheet
BDW24B_FairchildSemiconductor.pdf
Description
Hammer Drivers/ Audio Amplifiers
