CQ0765RT - FSCQ0765RT

Fairchild Semiconductor

📥 Download Datasheet

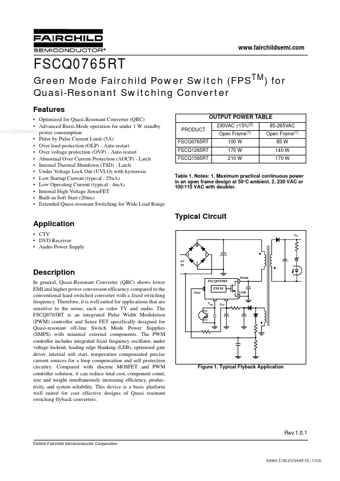

CQ0765RT Datasheet Preview — Preview of CQ0765RT PDF

Datasheet Details

Part number	CQ0765RT
Manufacturer	Fairchild Semiconductor
File Size	777.31 KB
Description	FSCQ0765RT
Datasheet	CQ0765RT_FairchildSemiconductor.pdf

CQ0765RT Product details

Description

Drain In general, Quasi-Resonant Converter (QRC) shows lower EMI and higher power conversion efficiency compared to the conventional hard switched converter with a fixed switching frequency.Therefore, it is well suited for applications that are sensitive to the noise, such as color TV and audio.The FSCQ0765RT is an integrated Pulse Width Modulation (PWM) controller and Sense FET specifically designed for Quasi-resonant off-line Switch Mode Power Supplies (SMPS) with minimal external component

Features

Optimized for Quasi-Resonant Converter (QRC).
Advanced Burst-Mode operation for under 1 W standby www. DataSheet4U. com power consumption.
Pulse by Pulse Current Limit (5A).
Over load protection (OLP) - Auto restart.
Over voltage protection (OVP) - Auto restart.
Abnormal Over Current Protection (AOCP) - Latch.
Internal Thermal Shutdown (TSD) - Latch.
Under Voltage Lock Out (UVLO) with hysteresis.
Low Startup Current.
