DM0565R - FSDM0565R

Datasheet Summary

Description

with minimal external components.

Features

  • Internal Avalanche Rugged Sense FET.
  • Advanced Burst-Mode operation consumes under 1 W at 240VAC & 0.5W load.
  • Precision Fixed Operating Frequency (66kHz).
  • Internal Start-up Circuit.
  • Pulse by Pulse Current Limiting.
  • Abnormal Over Current Protection (AOCP).
  • Over Voltage Protection (OVP).
  • Over Load Protection (OLP).
  • Internal Thermal Shutdown Function (TSD).
  • Auto-Restart Mode.
  • Under Voltage Lock Out (U.

📥 Download Datasheet

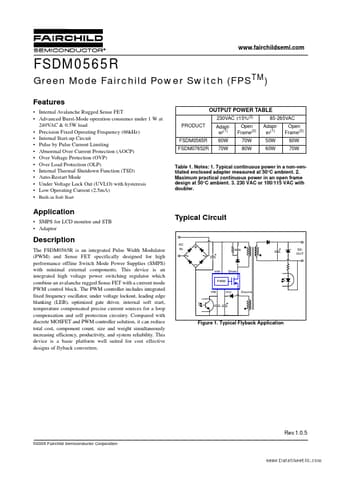

Datasheet preview – DM0565R

Datasheet Details

Part number DM0565R
Manufacturer Fairchild Semiconductor
File Size 265.78 KB
Description FSDM0565R
Datasheet download datasheet DM0565R Datasheet
