Part number: DM7408
Manufacturer: Fairchild Semiconductor
File Size: 33.68KB
Download: 📄 Datasheet

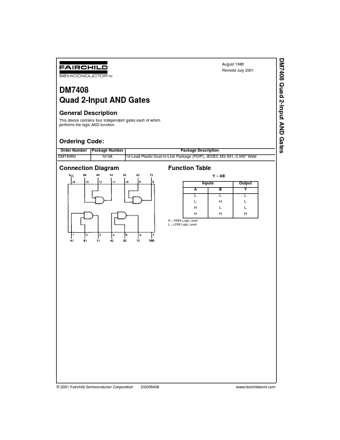

Description: Quad 2-Input AND Gates
This device contains four independent gates each of which performs the logic AND function.
Ordering Code:
Order Number Package Number
Package Description
DM7408N
N14A
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide
Conne.
