DM74ALS1034 - Hex Non-Inverting Driver

Product Overview

Fairchild Semiconductor

Part number	DM74ALS1034
Manufacturer	Fairchild Semiconductor
File Size	46.08 KB
Description	Hex Non-Inverting Driver
Datasheet	DM74ALS1034 Datasheet

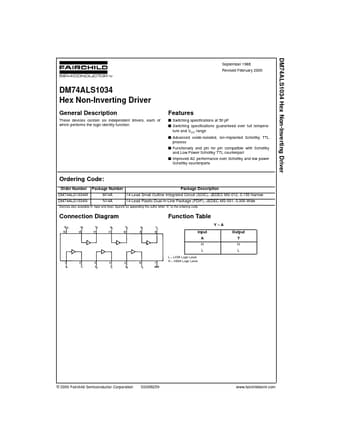

Additional preview pages of the DM74ALS1034 datasheet.

These devices contain six independent drivers, each of which performs the logic identity function.

s Switching specifications at 50 pF s Switching specifications guaranteed over full temperature and VCC range s Advanced oxide-isolated, ion-implanted Schottky TTL process s Functionally and pin for pin compatible with Schottky and Low Power Schottky TTL counterpart s Improved AC performance over Schottky and low power Schottky counterparts Ordering Code: Order Number DM74ALS1034M DM74ALS1034N Package Number M14A N14A Package.
