DM74ALS5245-1

Octal 3-STATE Transceiver

DM74ALS5245-1 Features

* the same performance as the ALS5245 with the addition of increased current drive capability to meet the requirements of various bus architectures. The recommended maximum IOL is increased to 48 mA. Features n Input Hysteresis n Low output noise generation n High input noise immunity n Advanced oxid

DM74ALS5245-1 General Description

This octal bus transceiver is designed for asynchronous two-way communication between data buses. The inputs include hysteresis which provides improved noise rejection. Data is transmitted either from the A bus to the B bus or from the B bus to the A bus depending on the logic level of the direction.

DM74ALS5245-1 Datasheet (119.87 KB)

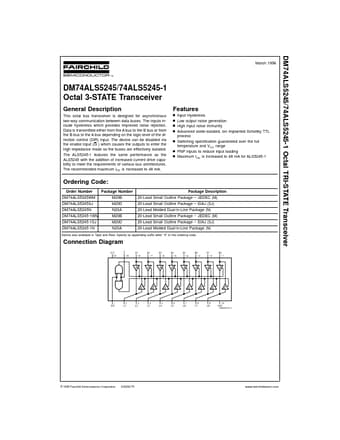

Preview of DM74ALS5245-1 PDF

Datasheet Details

Part number:

DM74ALS5245-1

Manufacturer:

Fairchild Semiconductor

File Size:

119.87 KB

Description:

Octal 3-state transceiver.
