DM74ALS74A

Dual D Positive-Edge-Triggered Flip-Flop with Preset and Clear

DM74ALS74A Features

* s Switching specifications at 50 pF s Switching specifications guaranteed over full temperature and VCC range s Advanced oxide-isolated, ion-implanted Schottky TTL process s Functionally and pin-for-pin compatible with Schottky and LS TTL counterpart s Improved AC performance over LS74 at approximat

DM74ALS74A General Description

The DM74ALS74A contains two independent positive edge-triggered flip-flops. Each flip-flop has individual D, clock, clear and preset inputs, and also complementary Q and Q outputs. Information at input D is transferred to the Q output on the positive going edge of the clock pulse. Clock triggering o.

DM74ALS74A Datasheet (68.98 KB)

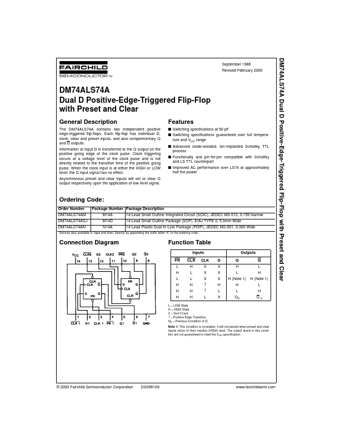

Preview of DM74ALS74A PDF

Datasheet Details

Part number:

DM74ALS74A

Manufacturer:

Fairchild Semiconductor

File Size:

68.98 KB

Description:

Dual d positive-edge-triggered flip-flop with preset and clear.
DM74ALS74A Dual D Positive-Edge-Triggered Flip-Flop with Preset and Clear September 1986 Revised February 2000 DM74ALS74A Dual D Positive-Edge-Trigg.
