DM74AS00

Quad 2-Input NAND Gate

DM74AS00 Features

* s Switching specifications at 50 pF s Switching specifications guaranteed over full temperature and VCC range s Advanced oxide-isolated, ion-implanted Schottky TTL process s Functionally and pin for pin compatible with Schottky, low power Schottky, and advanced low power Schottky TTL counterpart s I

DM74AS00 Datasheet (46.31 KB)

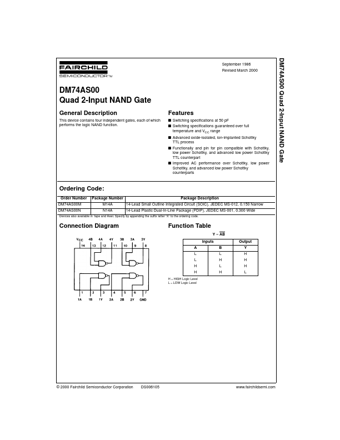

Preview of DM74AS00 PDF

Datasheet Details

Part number:

DM74AS00

Manufacturer:

Fairchild Semiconductor

File Size:

46.31 KB

Description:

Quad 2-input nand gate.
