DM74AS244 Datasheet - Fairchild Semiconductor

DM74AS244 3-STATE Bus Driver/Receiver

This family of Advance Schottky 3-STATE Bus circuits are designed to provide either bidirectional or unidirectional buffer interface in Memory, Microprocessor, and Communication Systems. The output characteristics of the circuits have low impedance sufficient to drive terminated transmission lines d.

DM74AS244 Features

* s Advanced oxide-isolated, ion-implanted Schottky TTL process s Improved switching performance with less power dissipation compared with Schottky counterpart s Functional and pin compatible with 74LS and Schottky counterpart s Switching response specified into 500Ω and 50 pF s Specified to interface

DM74AS244 Datasheet (56.89 KB)

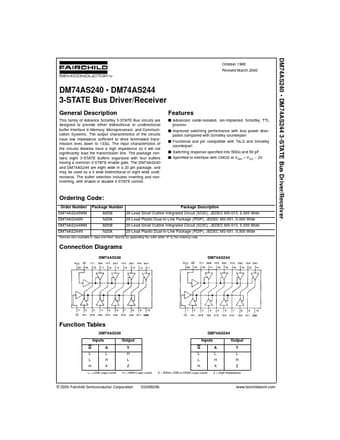

DM74AS244 Datasheet Preview — Preview of DM74AS244 PDF

Datasheet Details

Part number:

DM74AS244

Manufacturer:

Fairchild Semiconductor

File Size:

56.89 KB

Description:

3-state bus driver/receiver.
