DM74S10 Datasheet - Fairchild Semiconductor

DM74S10 Triple 3-Input NAND Gate

This device contains three independent gates each of which performs the logic NAND function. Ordering Code: Order Number Package Number Package Description DM74S10 N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide Connection Diagram Function Table Y = ABC Inputs AB .

DM74S10-FairchildSemiconductor.pdf

Preview of DM74S10 PDF

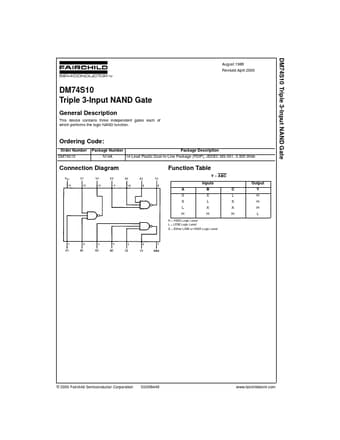

DM74S10 Datasheet Preview Page 2 DM74S10 Datasheet Preview Page 3

Datasheet Details

Part number:

DM74S10

Manufacturer:

Fairchild Semiconductor

File Size:

32.89 KB

Description:

Triple 3-input nand gate.
