DM74S257 Datasheet, Selector/multiplexer, Fairchild Semiconductor

DM74S257 Features

  • Selector/multiplexer s 3-STATE versions S157, S158, with same pin-outs s Schottky-clamped for significant improvement in A-C performance s Provides bus interface from multiple sources in high-performance sy

PDF File Details

Part number:

DM74S257

Manufacturer:

Fairchild Semiconductor

File Size:

47.77kb

Download:

📄 Datasheet

Description:

3-state quad 1-of-2 data selector/multiplexer. These Schottky-clamped high-performance multiplexers feature 3-STATE outputs that can interface directly with data lines of bus-organ

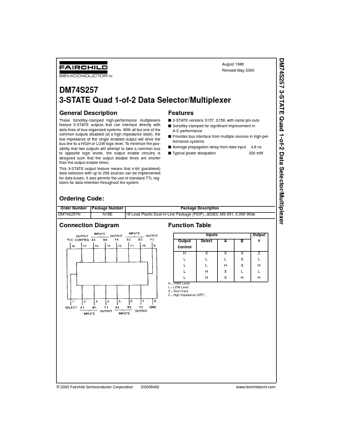

Datasheet Preview: DM74S257 📥 Download PDF (47.77kb)
