DM74S280 Datasheet, Generator/checker, Fairchild Semiconductor

DM74S280 Features

  • Generator/checker s Generates either odd or even parity for nine data lines s Cascadable for N-bits s Can be used to upgrade existing systems using MSI parity circuits s Typical data-to-output delay
    &

PDF File Details

Part number:

DM74S280

Manufacturer:

Fairchild Semiconductor

File Size:

62.36kb

Download:

📄 Datasheet

Description:

9-bit parity generator/checker. These universal, nine-bit parity generators/checkers utilize Schottky-clamped TTL high-performance circuitry, and feature odd/even ou

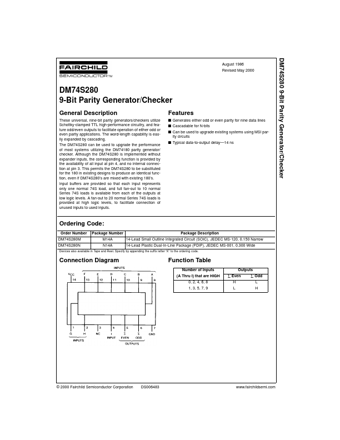

Datasheet Preview: DM74S280 📥 Download PDF (62.36kb)
Page 2 of DM74S280 Page 3 of DM74S280

DM74S280 Application

  • Applications The word-length capability is easily expanded by cascading. The DM74S280 can be used to upgrade the performance of most systems utiliz
